Two-lane crossover







Two-lane crossover

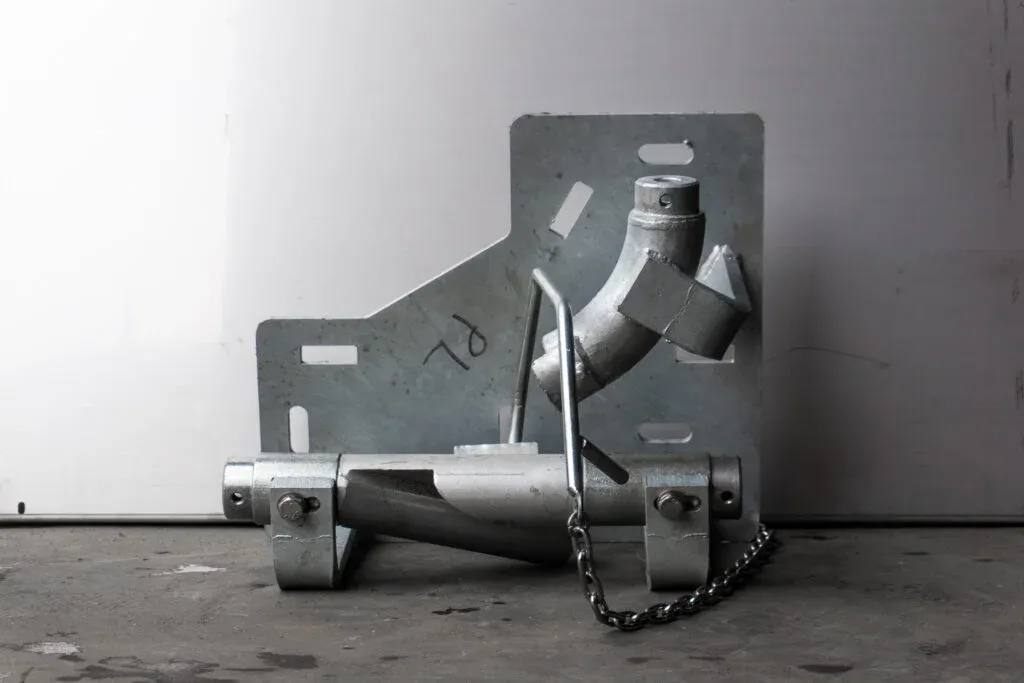

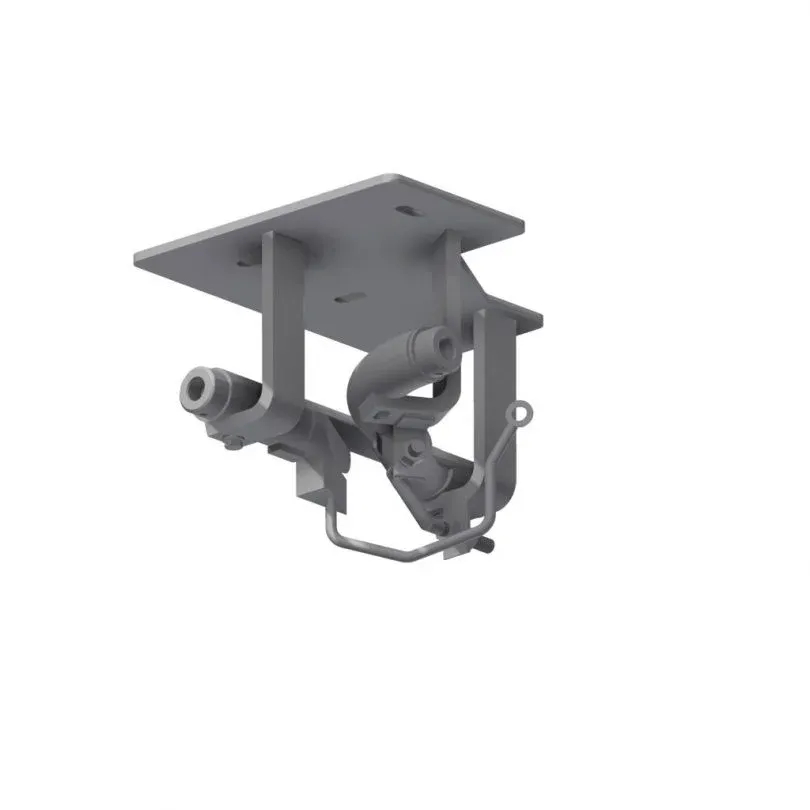

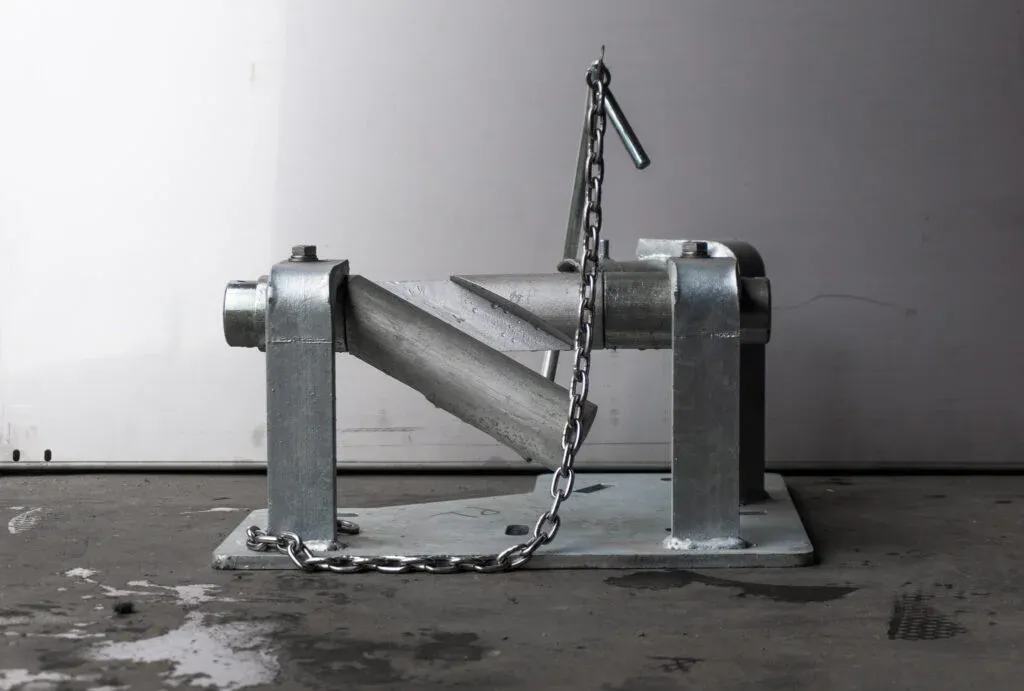

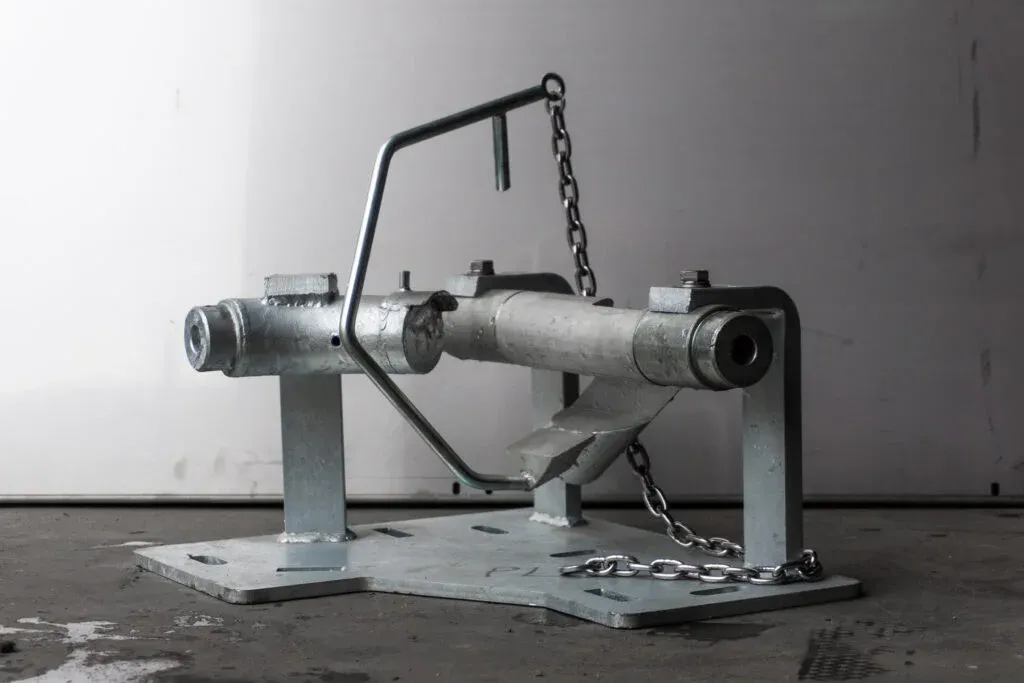

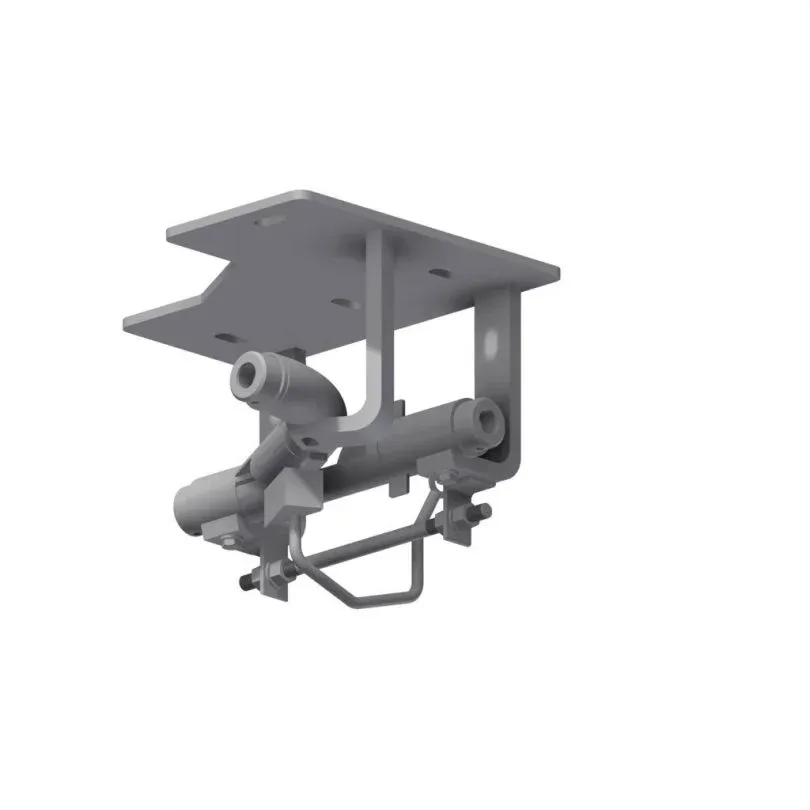

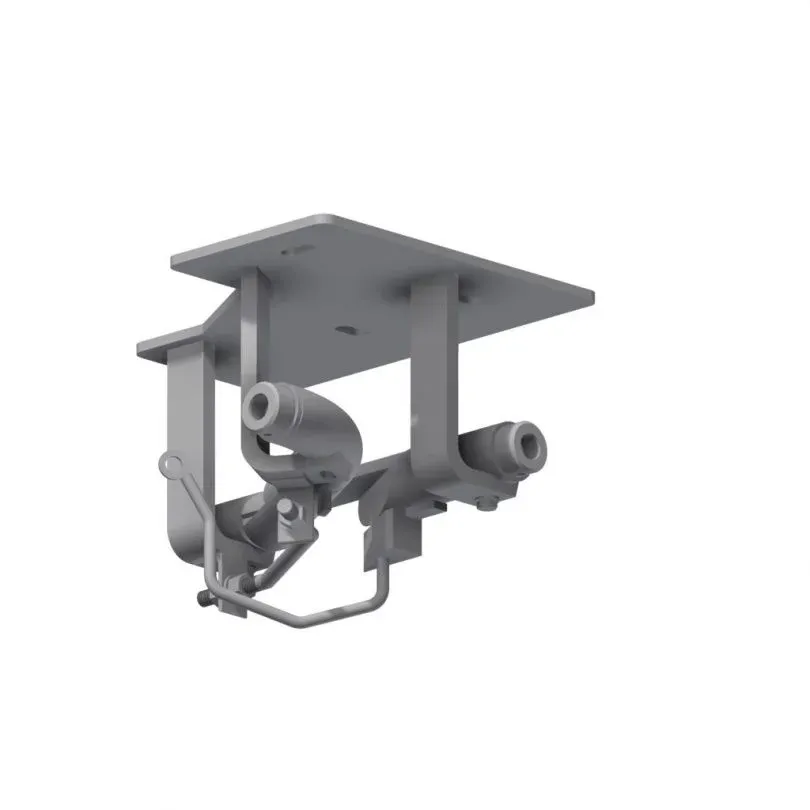

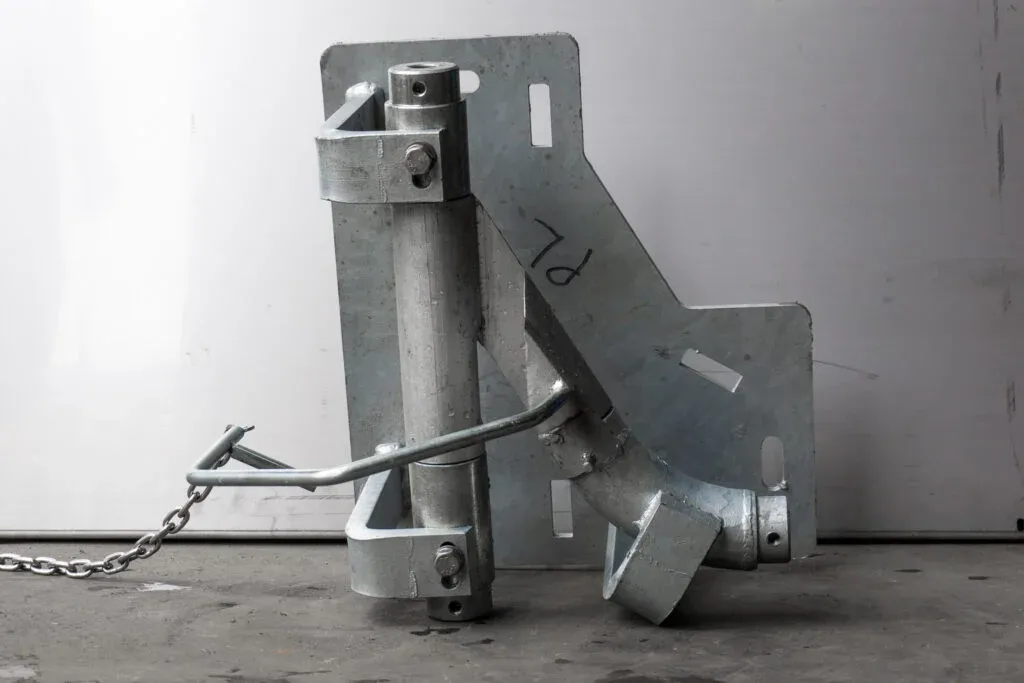

The two-track crossover of the Pipe Railway is used to change the direction of movement of raw materials along the Pipe Railway. Manufacture of hot-dip galvanized steel or stainless steel. The track is made of solid material. The set includes a stainless steel chain for turning the crossover. With the separation under the pipe of the queue ∅48.3 or ∅60.3.
Types of crossovers:
Crossover RLL: R-crossover, L-turns left, L-suspension left
RLL1-Ø 48.3 / stainless Track / 24 KG
RLL2-Ø 48.3 | galvanized track / 24 KG
RLL3-Ø 60.3 / stainless track / 37 kg
RLL4-Ø 60.3 / galvanized track / 37 kg
Crossover RLP: R-crossover, L-turns left, P-suspension on the right
RLP1-Ø 48.3 / stainless track / 22.5 kg
RLP2-Ø 48.3 / galvanized track / 22.5 kg
RLP3-Ø 60.3 / stainless track / 35 kg
RLP4-Ø 60.3 / galvanized track / 35 kg
Crossover RPL: R-crossover, P-turns right, L-suspension left
RPL1-Ø 48.3 / stainless track / 22.5 kg
RPL2-Ø 48.3 / galvanized track / 22.5 kg
RPL3-Ø 60.3 / stainless track / 35 kg
RPL4-Ø 60.3 / galvanized track / 35 kg
RPP Crossover: R-crossover, P-turns right, P-suspension to the right
RPP1-Ø 48.3 / stainless Track / 24 KG
RPP2-Ø 48.3 / galvanized track / 24 KG
RPP3-Ø 60.3 / stainless track / 37 kg
RPP4-Ø 60.3 / galvanized track / 37 kg
