Full Control Hygiene Station SHM-3
Full Control Hygiene Station SHM-3

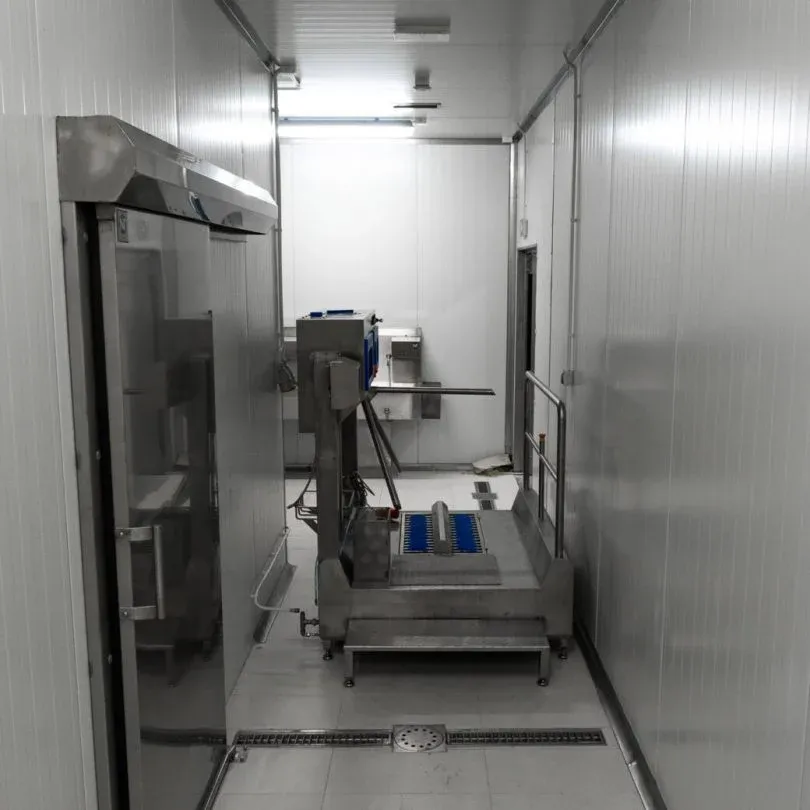

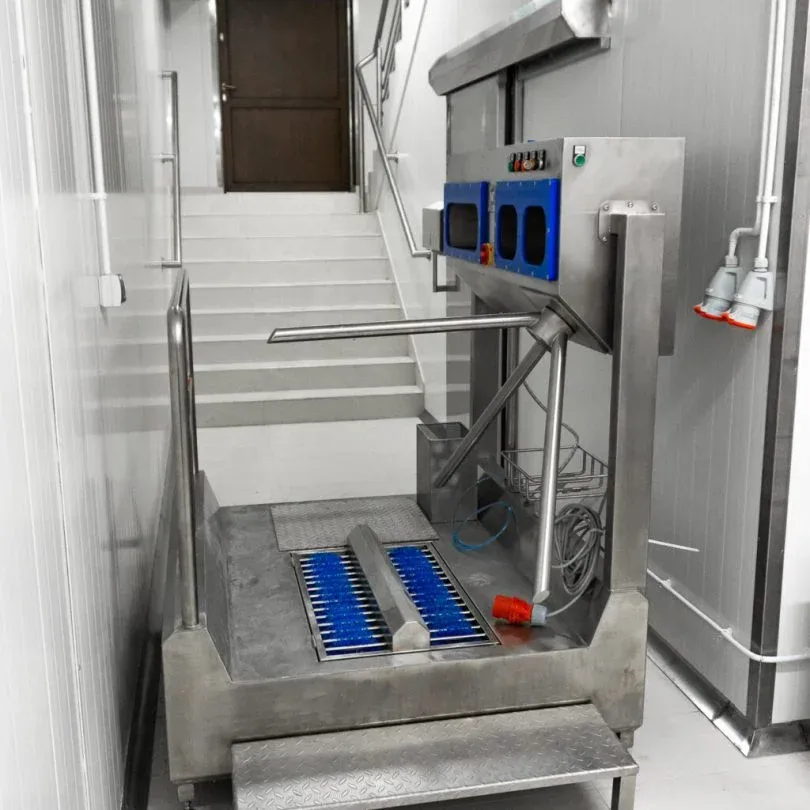

The Full Control Hygiene Station SHM-3 has been designed for the automatic washing and disinfection of hands and shoes of the staff before entering the sanitary zone. Hygiene stations, depending on the model, consisting of a disinfection module for shoes, a module for handwashing, a module for disinfecting hands, and an input control module. The design provides for the mandatory sequential execution of actions for washing, disinfecting hands and shoes. This machine includes: Handwash Module, Hand Disinfection Module, Entrance Control Module, Module disinfection and cleaning shoes.
Handwash module. The inclusion of the supply of detergent occurs when hands are brought into the zone of operation of the photocell located in the
handwashing chamber. After treating the hands with detergent, the water is turned on and rinsed.
Hand disinfection module. The inclusion of the supply of disinfectant occurs when the presentation of both hands in the zone of operation of photocells located in the disinfectant chamber. Spraying disinfectants carry 4 nozzles located in the upper and lower parts of the disinfectant chamber.

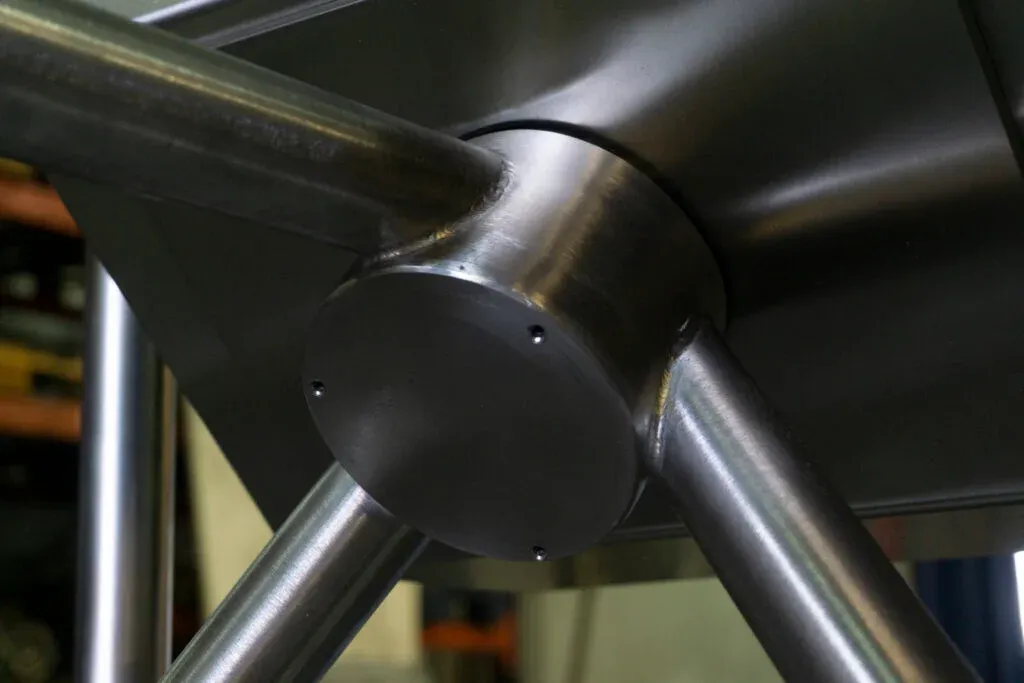

Entrance Control Module. The turnstile opens access to the production area only after successive completion of the process of washing and disinfection hands, it signals light indicator. When, if the disinfectant has run out, the turnstile is blocked and no further passage is possible.

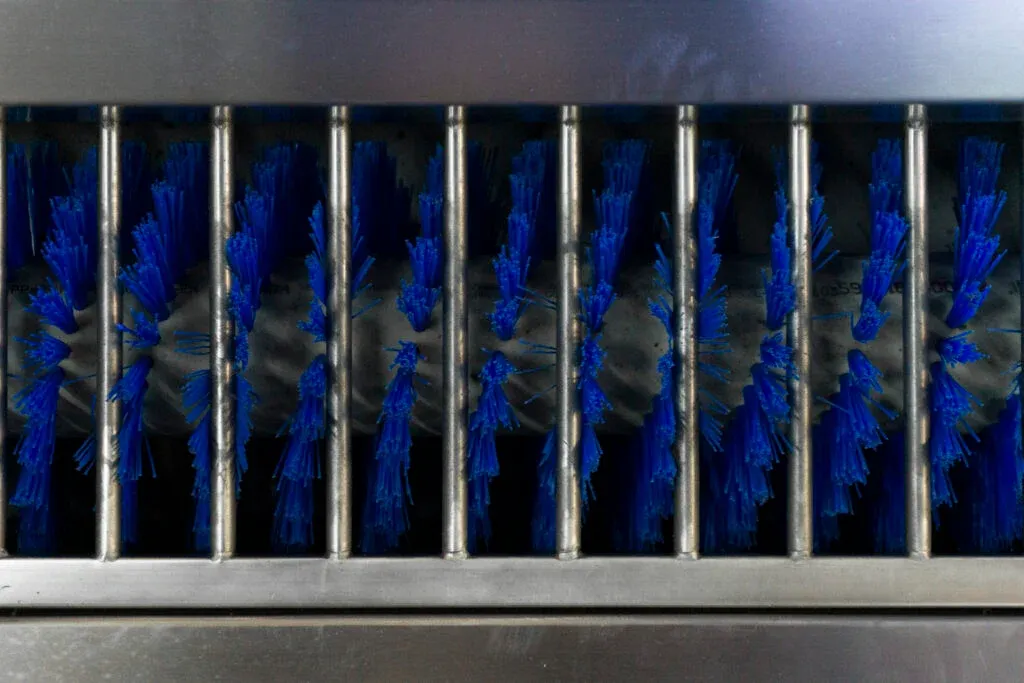

Module disinfection and cleaning shoes. Cleaning and disinfecting the soles of the shoes is done with two rotating horizontal brushes, to which cleaning solution is fed. For passage through the brushes, a special grille is provided. The rotation of the brushes and the supply of cleaning solution are activated by a photocell located on the station body.
