Vacuum tumbler MS-700V











Vacuum tumbler MS-700V

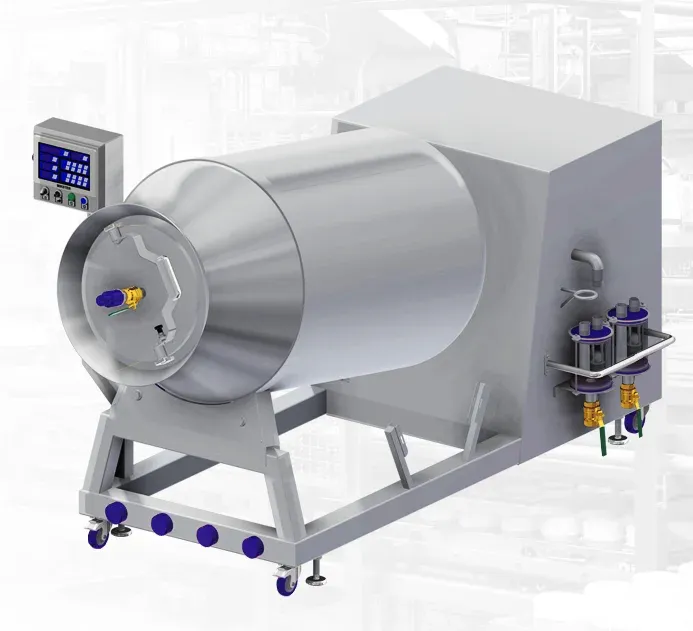

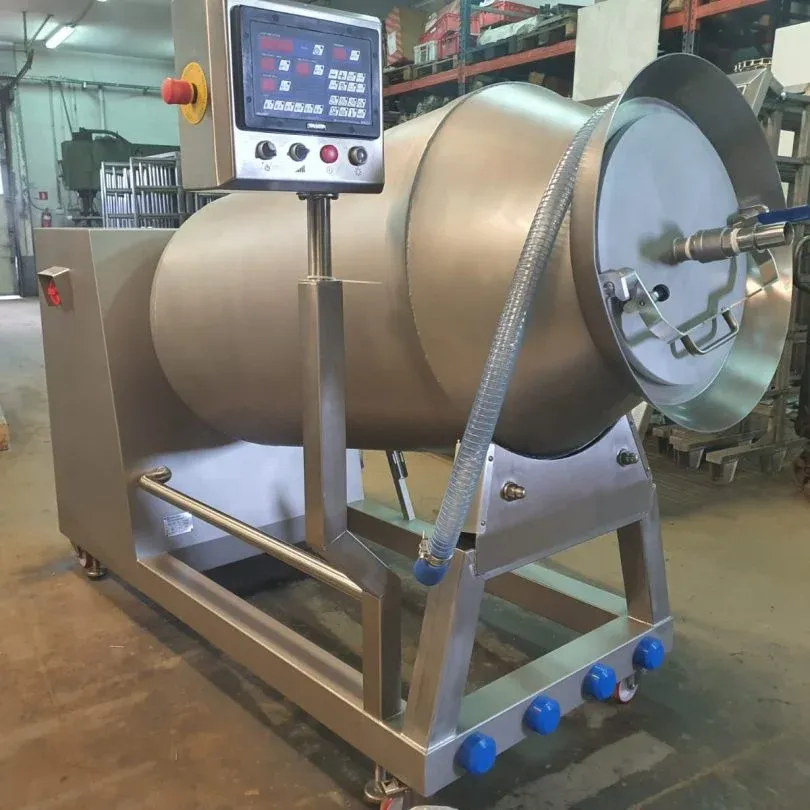

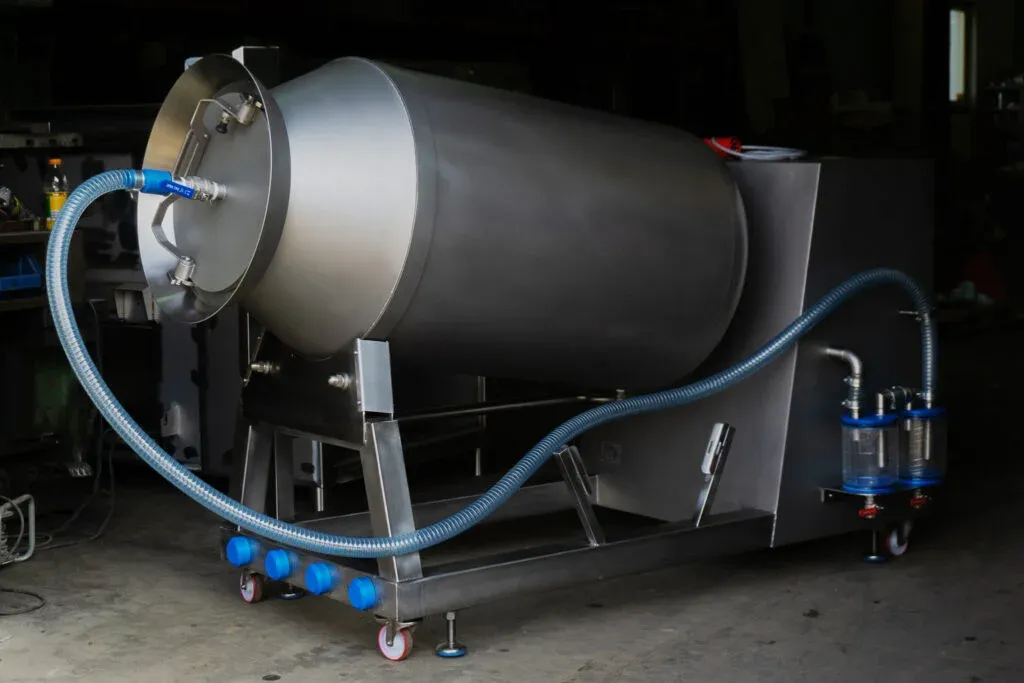

Vacuum tumbler MS-700V designed to be used in small and medium-sized meat plants to massage, marinade, pickle, and flavor in vacuum environment for maximum saturation of spices and brine to achieve high-quality meat products. This machine equipped with 700 l barrel which allows load up to 420 kg of products. Main drive power of 0.75 kW provides 1-9 rot. /min, so meat does not damage during the process. Power of installed vacuum pump 0.75 kW gives productivity of 40 m3/h and provides high efficiency of the proper massaging process. The use of high-quality stainless steel allows the machine to be kept clean and properly hygienic in production.
Specifications
- Model: MS-700V
- Barrel capacity, l: 700
- Max. Charge, kg: 420
- Arm rotation speed, rot./min: 1-9
- Automatic vacuum regulation, %: 0-99
- Automatic process time regulation, h: 0-24

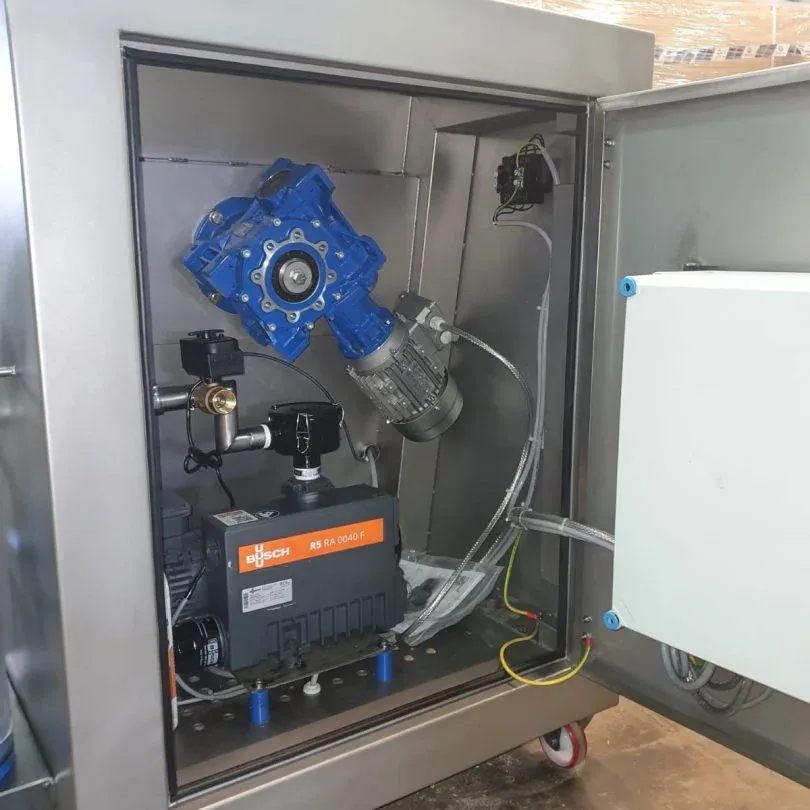

- Vacuum pump productivity, m3/h: 40
- Vacuum pump power, kW: 0.75
- Main drive power, kW: 0.75
- Total power, kW: 1.5
- Voltage, V/Hz: by customer's request
Dimensions

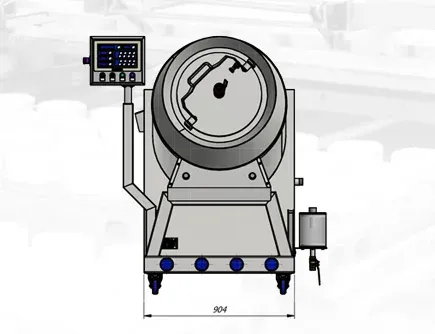

- Dimensions (L * B * H), mm: 2043 x 904 x 1550
- Weight, kg: 540
