Vacuum mixer RX-300V
Vacuum mixer RX-300V

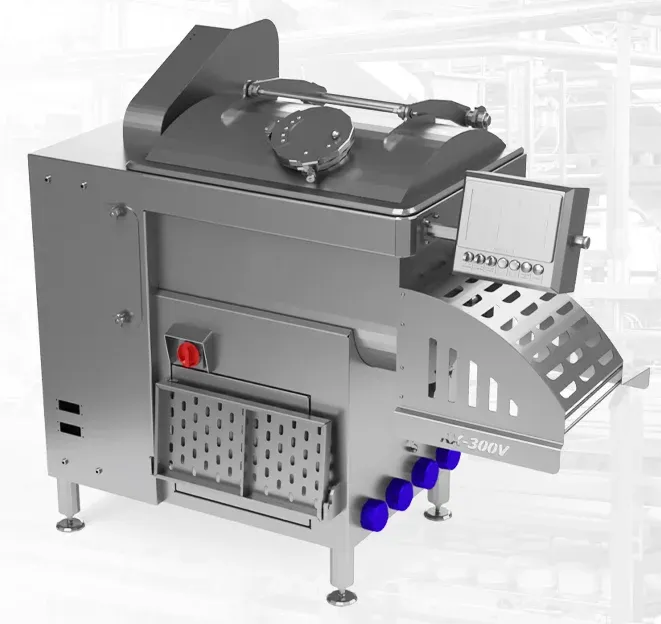

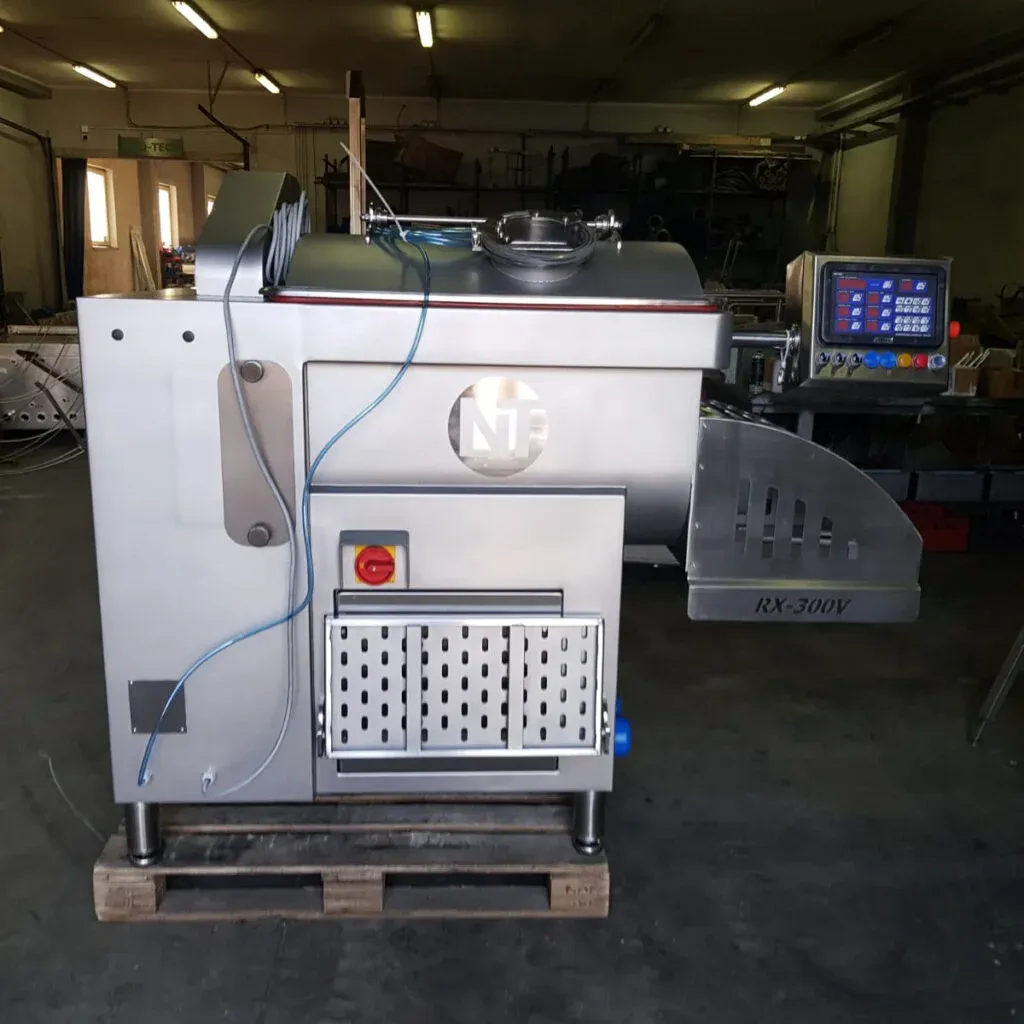

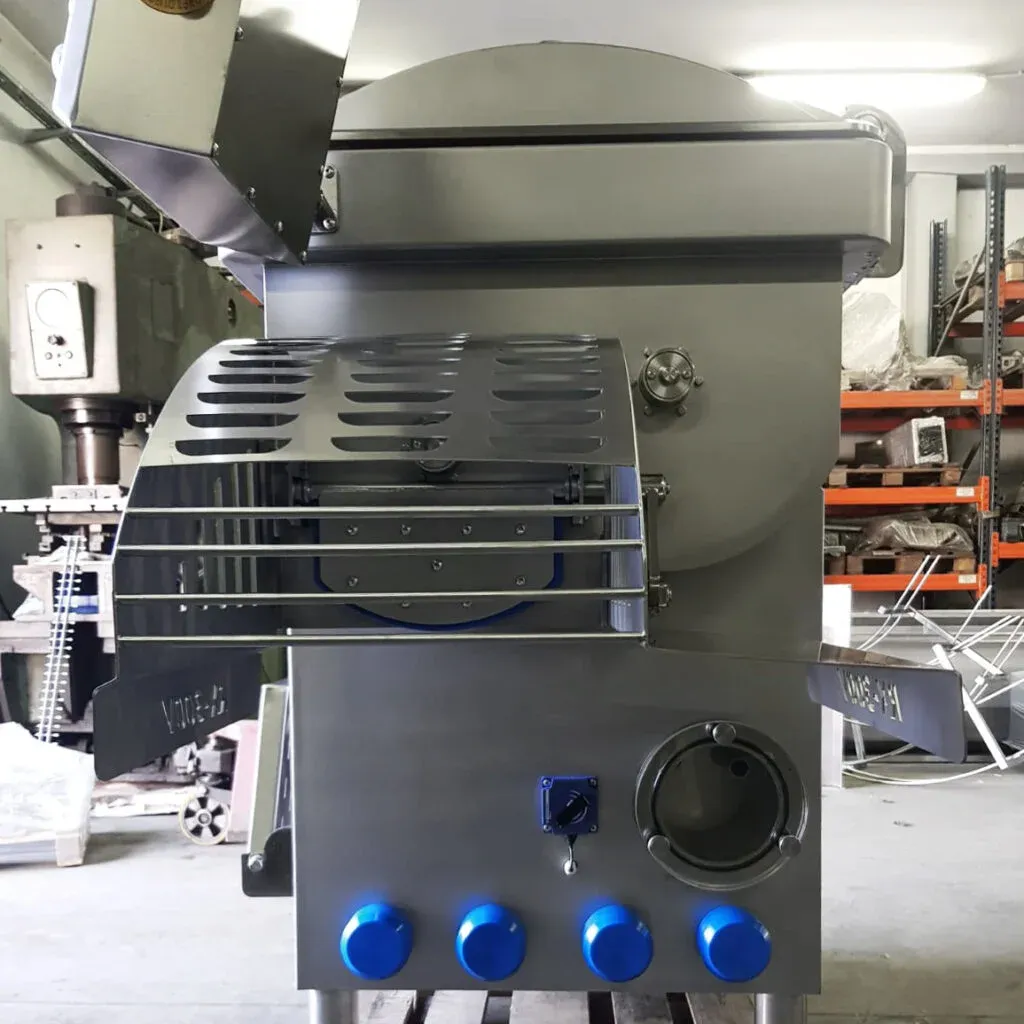

Vacuum mixer RX-300V is made of stainless acid-proof steel. The machine allows mixing in both directions. It is equipped with double mixing shafts and has a moisture proof button control panel. Motor power 3 kW provides 5-48 rot. /min. The mixer has a powerful vacuum pump delivering output is 20 m³/ h. The tank capacity is 300 liters, which allows it to fill with 240 kg of products. Unloading provided by a mechanical system based on the rotation of paddles. The mixer adapted to unloading directly into the standard buggies of 200 liters capacity. The vacuum mixer RX-300V can be equipped with additional options such as a touch panel, temperature measuring system, column loader, weight system, and dosage of water.
Specifications
- Model: RX 300V
- Control panel: button control
- Tank capacity, l: 300
- Max. Charge, kg.: 225
- Total power, kW: 3
- Vacuum pump productivity, m³/ h: 20
- Rotation speed, rot./min: 5-48
- Voltage, V/Hz: 400/50

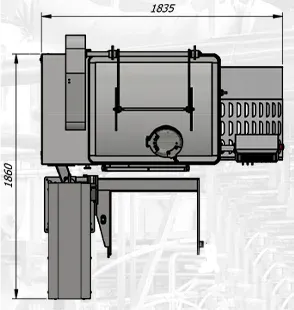

Dimensions
- Dimensions (L * B * H), mm: 1350 x 1040 x 1424
- Weight, kg: 665
Optional
- Touch panel
- Temperature measuring system

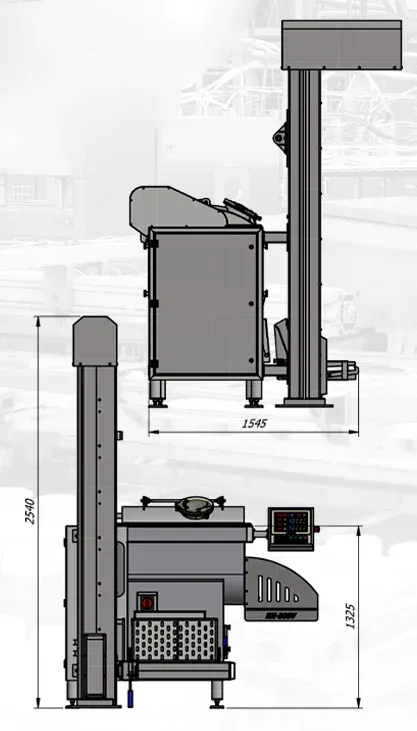

- Column loader
- Weight system
- Dosage of water
