Vacuum mixer RX-850V
Vacuum mixer RX-850V

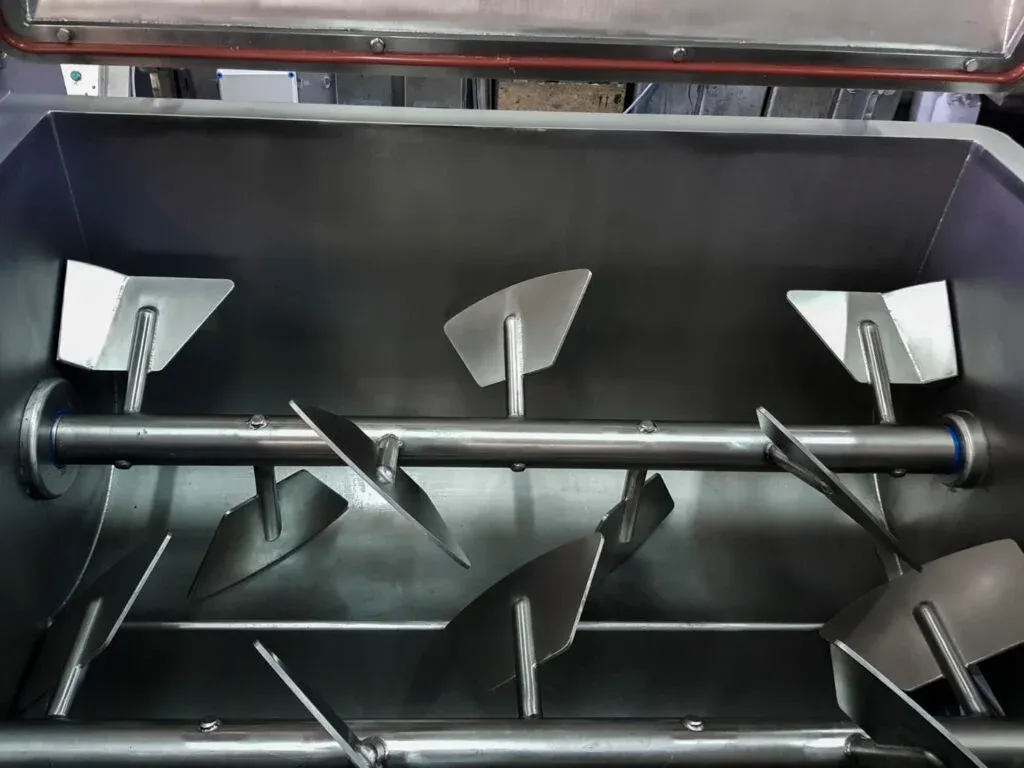

Vacuum mixer RX-850V is made of stainless acid-proof steel. The machine allows mixing in both directions. It is equipped with double mixing shafts and has a moisture proof button control panel. Motor power 11 kW provides 8-40 rot. /min. The mixer has a powerful vacuum pump delivering output is 40 m³/ h. The tank capacity is 850 liters, which allows it to fill with 635 kg of products. Unloading provided by a mechanical system based on the rotation of paddles. The mixer adapted to unloading directly into the standard buggies of 200 liters capacity. The vacuum mixer RX-850V can be equipped with additional options such as a touch panel, temperature measuring system, column loader, weight system, and dosage of water.
Specifications
- Model: RX 850V
- Control panel: button control
- Tank capacity, l: 850
- Max. Charge, kg.: 635
- Total power, kW: 11
- Vacuum pump productivity, m3/h: 40
- Rotation speed, rot./min: 8-40
- Voltage, V/Hz: 400/50
Dimensions
- Dimensions (L * B * H), mm: 2176 x 1195 x 1740
- Weight, kg: 1310
Optional
- Touch panel
- Temperature measuring system
- Column loader
- Weight system
- Dosage of water
