Mixer AMM-150 H

Mixer AMM-150 H
Mixer AMM-150 H
Mixer AMM-150 H

Mixer AMM-150 H

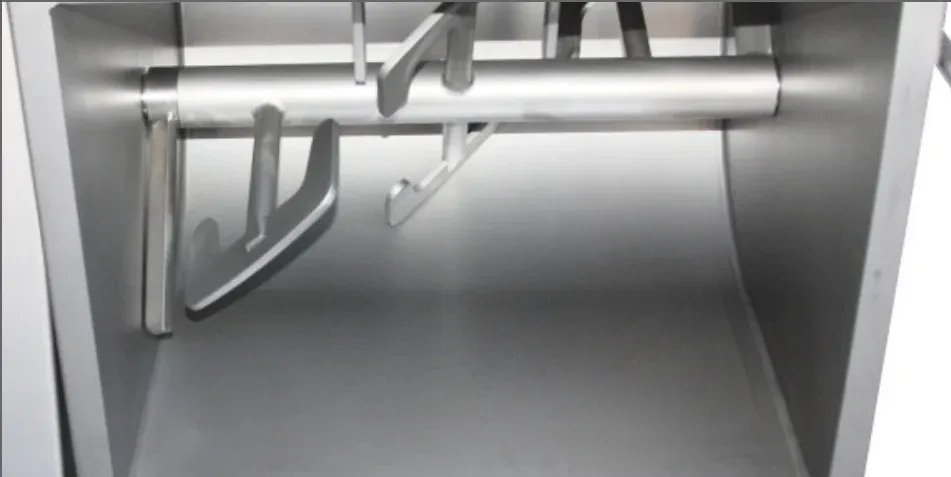

Vacuum mixer RX-1050V is made of stainless acid-proof steel. The machine allows mixing in both directions. It is equipped with double mixing shafts and has a moisture proof button control panel. Motor power 11 kW provides 5-48 rot. /min. The mixer has a powerful vacuum pump delivering output is 60 m3/h. The tank capacity is 1050 liters, which allows it to fill with 790 kg of products. Unloading provided by a mechanical system based on the rotation of paddles. The mixer adapted to unloading directly into the standard buggies of 200 liters capacity.

Specifications

  • Model: AMM-150 H
  • Control panel: button control
  • Tank capacity, l: 150
  • Max. Charge, kg.: 110
  • Total power, kW: 1.5
  • Rotation speed, rot./min: 5-48
  • Voltage, V/Hz: by customer request

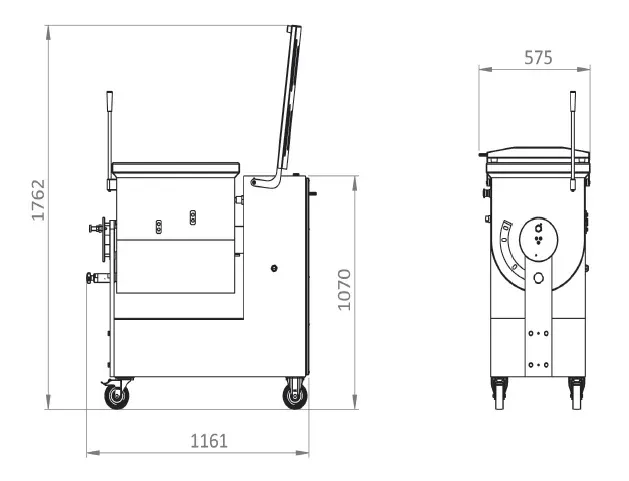

Dimensions

  • Dimensions (L * B * H), mm: 1161 x 575 x 1762
  • Weight, kg: 205
